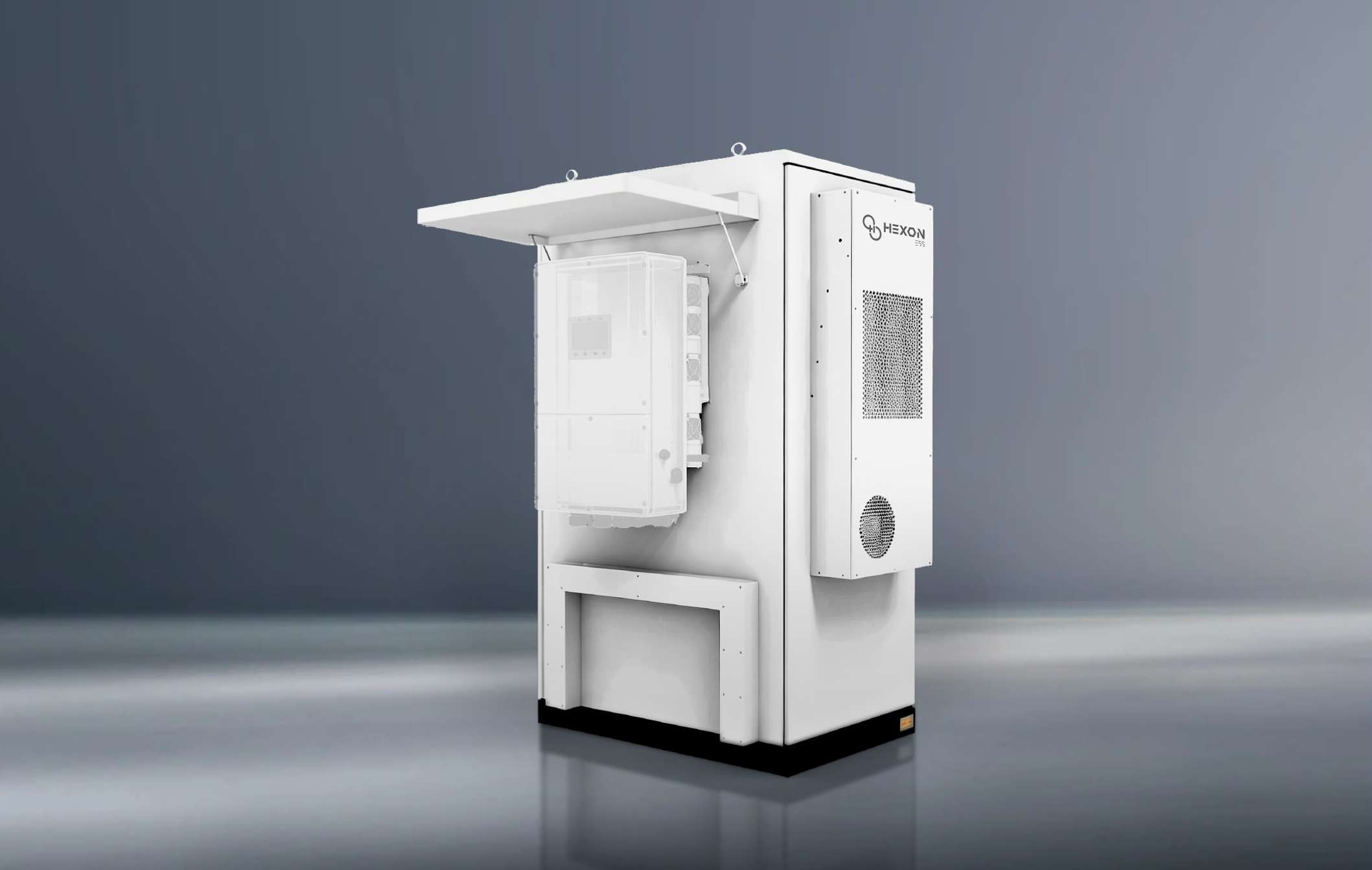

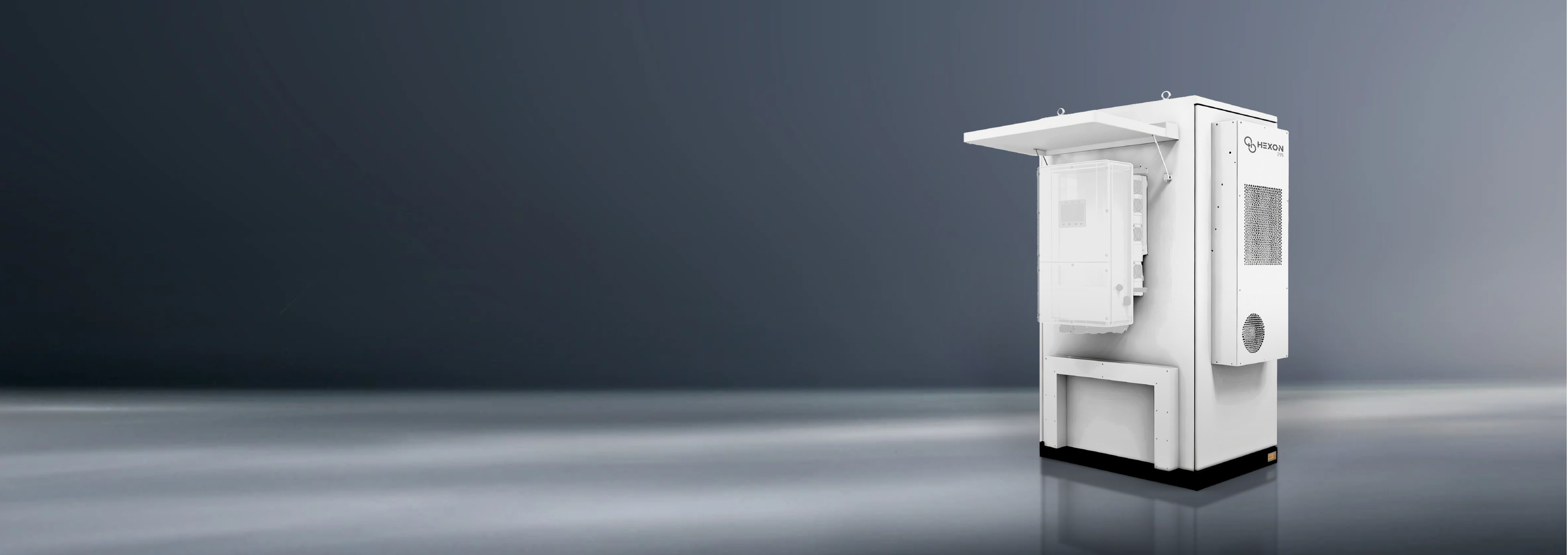

100_120 logo修改版本HD-100_120-E.jpg 100_120 logo修改版本HD-100_120-E.jpg

100/120kWh

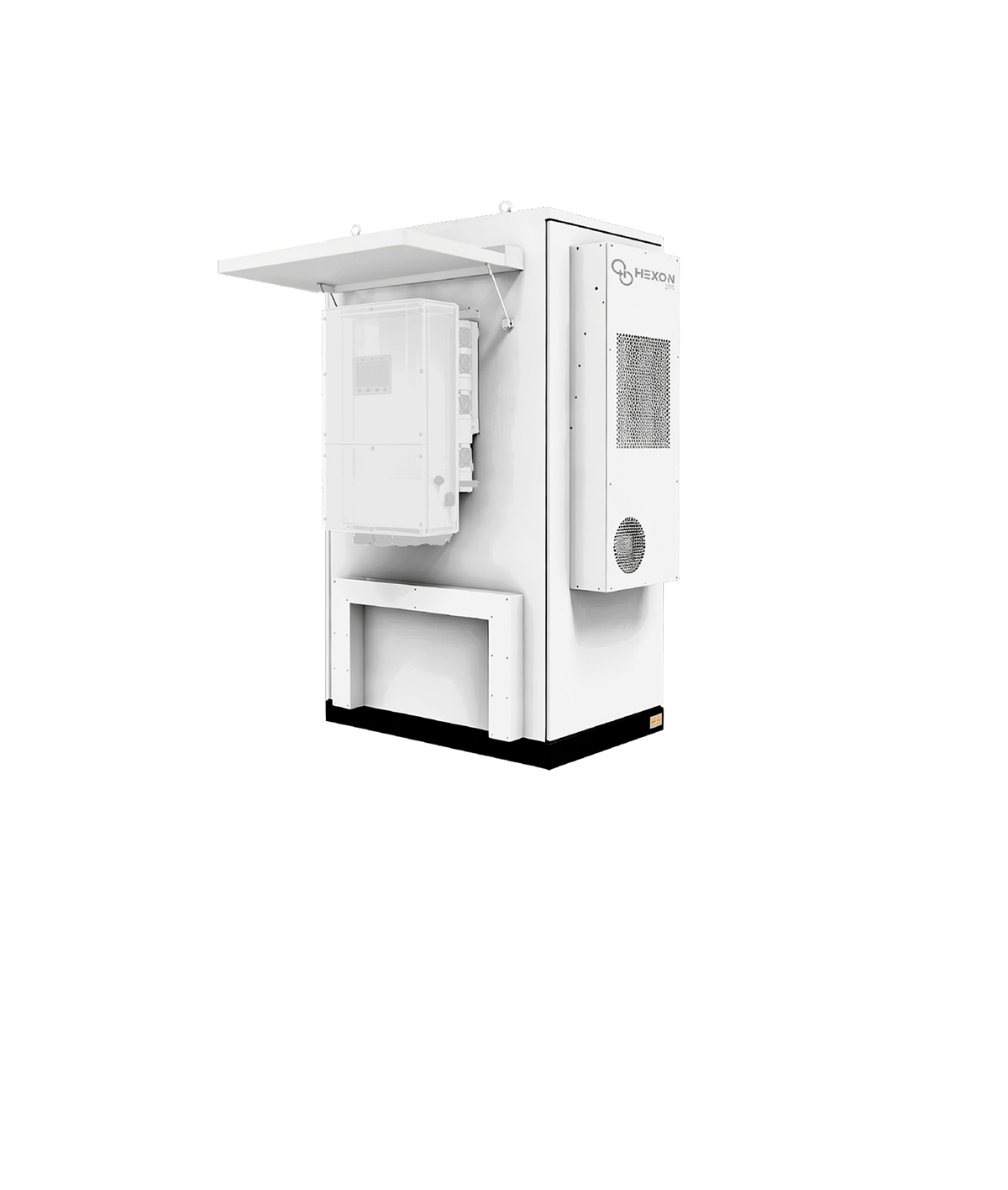

Air-cooled Hybrid DC Cabinet

HD-100/120-E
(Hybrid Inverter Optional)

Contact Us

Air-cooled Hybrid DC Cabinet

  • c1icon05.svg
    Comprehensive Safety

    High Outdoor Grade IP55 dustproof & waterproof
    Balanced Cooling Optimized ventilation, temp gap ≤6°C
    Stable Operation Reliable performance under high temperature

  • c1icon06-148.svg
    High Efficiency & Cost Saving

    High Energy Utilization Up to 90% RTE, 100% DOD
    Self-developed Integration LFP 314Ah 3S all-in-one system
    Wide Compatibility Supports PV & most hybrid inverters

  • c1icon07.svg
    Simple Dual-mode O&M

    Cloud Diagnosis Fast fault detection in real time
    Dual Control Local onsite & cloud remote monitoring
    Low Labor Cost Reduce frequent field inspection

  • c1icon08.svg
    Compact & Flexible Deployment

    Small Footprint Only 0.96m², easy transport & install
    Wide Compatibility Fits mainstream 30–50kW hybrid inverters
    Modular Scalability Parallel design for on-demand expansion

Product Parameters

  • HD-120-E
  • HD-100-E
  • ParameterSpecifications
    Cell TypeLFP / 314Ah
    Pack Configuration20.096 kWh / 1P20S
    System Configuration120.576 kWh / 1P120S
    Rated DC Voltage384 V
    DC Voltage Range336 ~ 432 V
    Max. Charge/Discharge Rate0.5 P
    Max. Depth of Discharge100% (25 ±2°C)
    Cycle Life≥ 8,000 cycles
    Max. input power (PV Input)60kW、80kW、100kW、100kW
    PV Voltage Range150 ~ 850V
    MPPT3、4
    Max. input Current40A3、40A4
    Rated Output Power (AC Side)30kW、40kW、50kW、60kW
    Rated AC Voltage400V
    AC Voltage Range±15%
    Grid Type3W+N+PE
    Rated Frequency50Hz/60Hz
    Power Factor0.99 / -0.8 ~ +0.8
    THDi≤3%
    DC Ratio<0.5% lpn
    Max. Round Trip Efficiency0.9
    CommunicationModbus TCP/IP
    Fire Suppression SystemAerosol
    IP RatingIP55
    Cooling MethodAir cooling
    Operating Temperature-25℃~55℃ (Derating after 45℃)
    Anticorrosion RatingC4 (C5 optional)
    Humidity0~95% RH (non-condensing)
    Altitude3000m (Derating above 2000m)
    Dimensions (W×D×H)800×1200×2100 mm
    Weight1200 kg
    Safety/EMCUN38.3, IEC62619, IEC63056, IEC62477-1, IEC61000-6-2/4
    Grid codeEEN50549-1/-10, EN50549-2/-10, G99, VDE4105, NRS097, C10/11


  • ParameterSpecifications
    ModelHD-100-E
    Cell TypeLFP / 314Ah
    Pack Configuration20.096 kWh / 1P20S
    System Configuration100.48 kWh / 1P100S
    Rated DC Voltage320 V
    DC Voltage Range280 ~ 360 V
    Max. Charge/Discharge Rate0.5 P
    Max. Depth of Discharge100% (25 ±2°C)
    Cycle Life> 8,000 cycles
    Max. input power (PV Input)60kW、80kW、100kW
    PV Voltage Range150 ~ 850V
    MPPT3、4
    Max. input Current40A3、40A4
    Rated Output Power (AC Side)30kW、40kW、50kW
    Rated AC Voltage400V
    AC Voltage Range±15%
    Grid Type3W+N+PE
    Rated Frequency50Hz/60Hz
    Power Factor0.99 / -0.8 ~ +0.8
    THDi≤3%
    DC Ratio<0.5% lpn
    Max. Round Trip Efficiency0.9
    CommunicationModbus TCP/IP
    Fire Suppression SystemAerosol
    IP RatingIP55
    Cooling MethodAir cooling
    Operating Temperature-25℃~55℃ (Derating after 45℃)
    Anticorrosion RatingC4 (C5 optional)
    Humidity0~95% RH (non-condensing)
    Altitude3000m (Derating above 2000m)
    Dimensions (W×D×H)800×1200×210 mm
    Weight1200 kg
    Safety/EMCUN38.3, IEC62619, IEC63056, IEC62477-1, IEC61000-6-2/4
    Grid codeEEN50549-1/-10, EN50549-2/-10, G99, VDE4105, NRS097, C10/11


solution

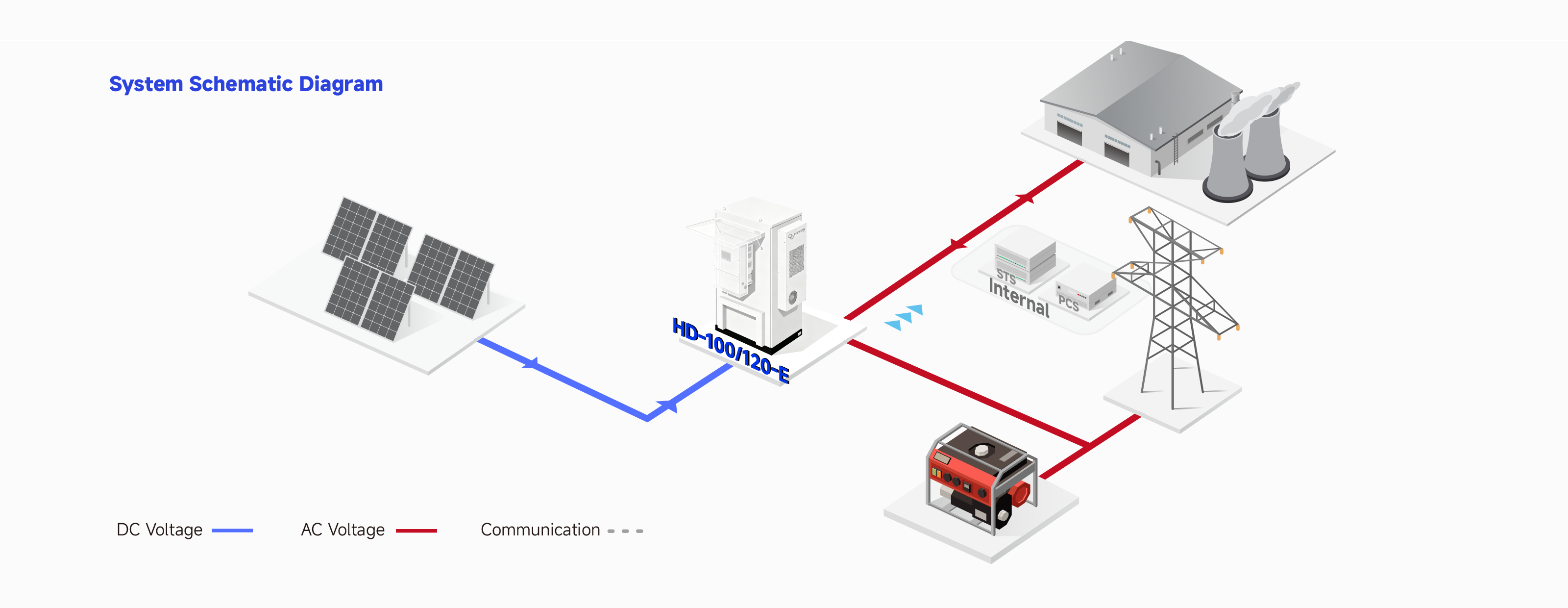

  • HD-100-120 Topology Diagram .png
