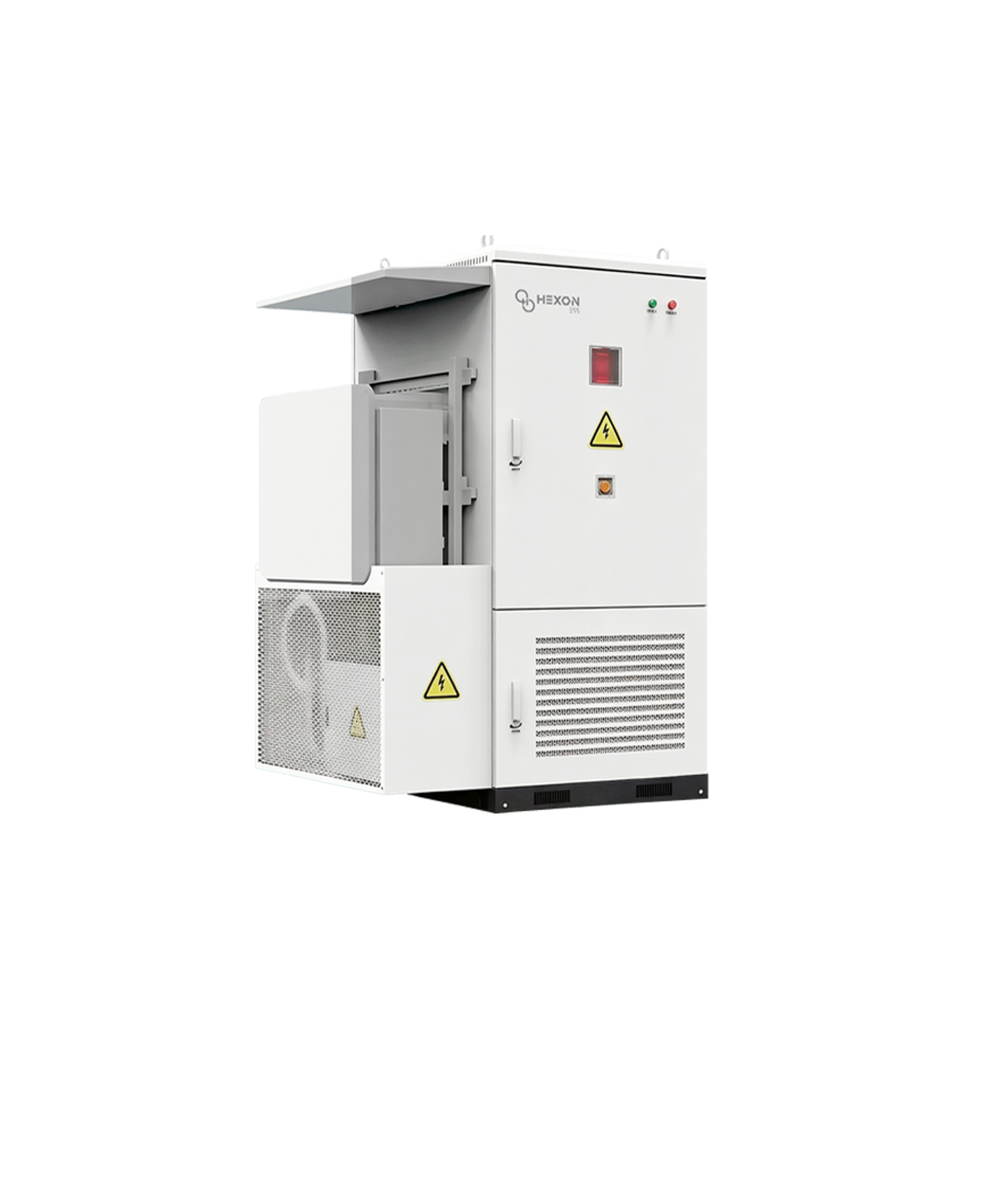

261kWh
Liquid cooled Hybrid DC Cabinet

HD-261-2

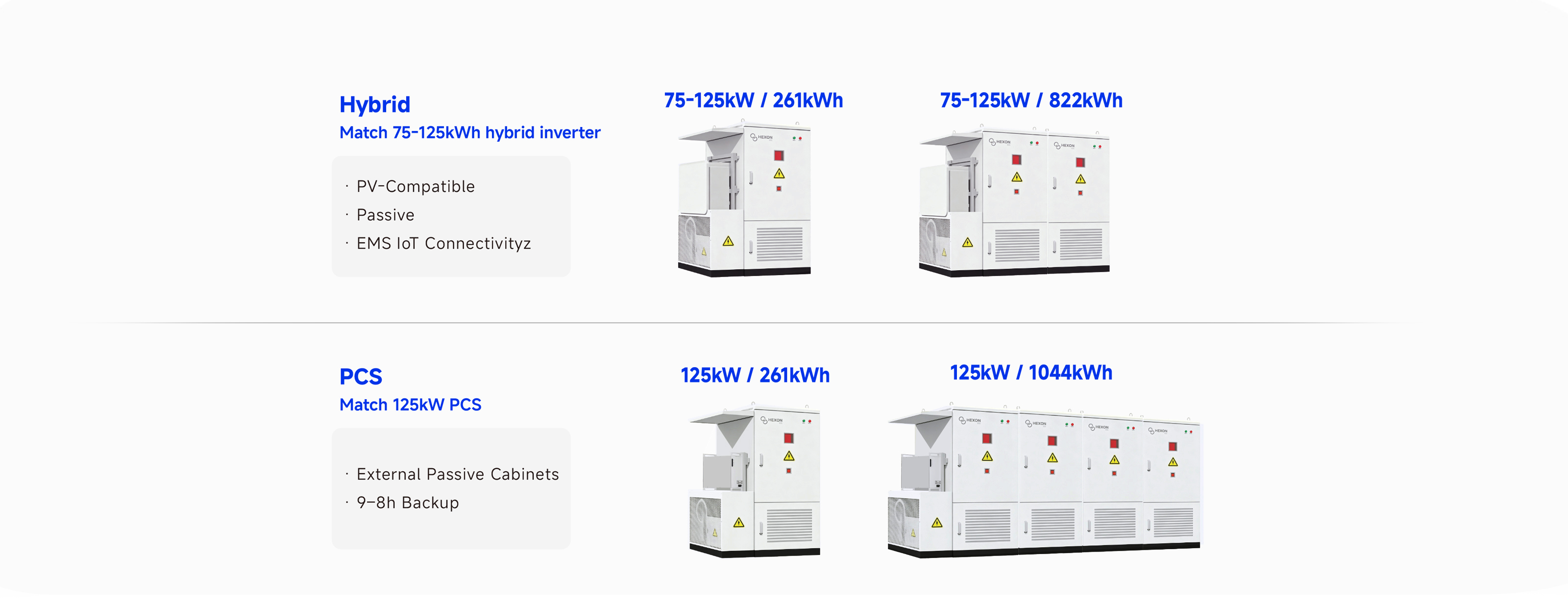

(Hybrid Inverter Optional )

Liquid cooled Hybrid DC Cabinet

Comprehensive Safety

Multi-layer Protection Fire + 160% overload resistance
Wide Temp Range-30°C ~ 60°C stable operation
High Efficiency

Low Carbon 130t annual emission cut
High Density +30% capacity per space
Simple O&M

AI Scheduling Millisecond backup switch
Cloud Management Remote parameter tuning
Easy Deployment

Plug & Play Pre-installed, powered on arrival
Time Saving Drastically reduces installation time
Scalable Design Modular expansion as needed

Parameter	Specifications
Model	HD-261-2
Cell Type	LFP/314Ah
Rated Capacity	314Ah
Configuration	1P260S (System Configuration: 261kWh / 1P260S)
Rated Energy	261kWh
Operating Voltage Range	650-949V
Rated Current	157A
Max. Charge/Discharge Current	200A
Charge/Discharge Rate	0.5C
Balancing Mode	Passive Balancing
Max. PV Input Power	240kW
Max. Input Voltage	1000V
Rated Input Voltage	600V
Startup Voltage	180V
MPPT Voltage Range	150-950V
Max. Input Current	10×42A
Max. Short-circuit Input Current	10×60A
MPPT Quantity / Max. String Quantity	10
Rated Power	125kW
Max. Apparent Power	125kVA
Rated Current	189.9A / 180.4A
Max. Current	250A
Rated Voltage	3/N/PE, 220V/380V; 3/N/PE, 230V/400V
Grid Frequency	50/60Hz
Total Current THDi	<3%
Power Factor	>0.99
Rated Power (Off-grid)	125kW
Max. Apparent Power (Off-grid)	1.2×rated for 100s; 1.4×rated for 10s; 1.6×rated for 200ms
Grid-tie/Off-grid Switching Time	<20ms
Rated Output Voltage (Off-grid)	3/N/PE, 220V/380V; 3/N/PE, 230V/400V
Rated Frequency (Off-grid)	50/60Hz
Total Voltage THDu	<2%
Fire Protection System	Compartment-level Aerosol + Pack-level Aerosol + Water Fire Suppression
Dimension (W×D×H) / Weight	1105×1325×2350mm / 2600kg (DC side)
Cable Entry	Bottom entry
Ingress Protection	IP55
Cabinet Anti-corrosion Grade	C4 (C5 optional)
Cooling Method	Liquid Cooling
External Communication Interface	RS485+LAN+CAN
Communication Protocol	Modbus-RTU/TCP, CAN
