HEMERA

Containerized Liquid Cooling Battery System
HBAT-5015/4180/3762/3344-15 (5015/4180/3762/3344kWh)

Contact Us

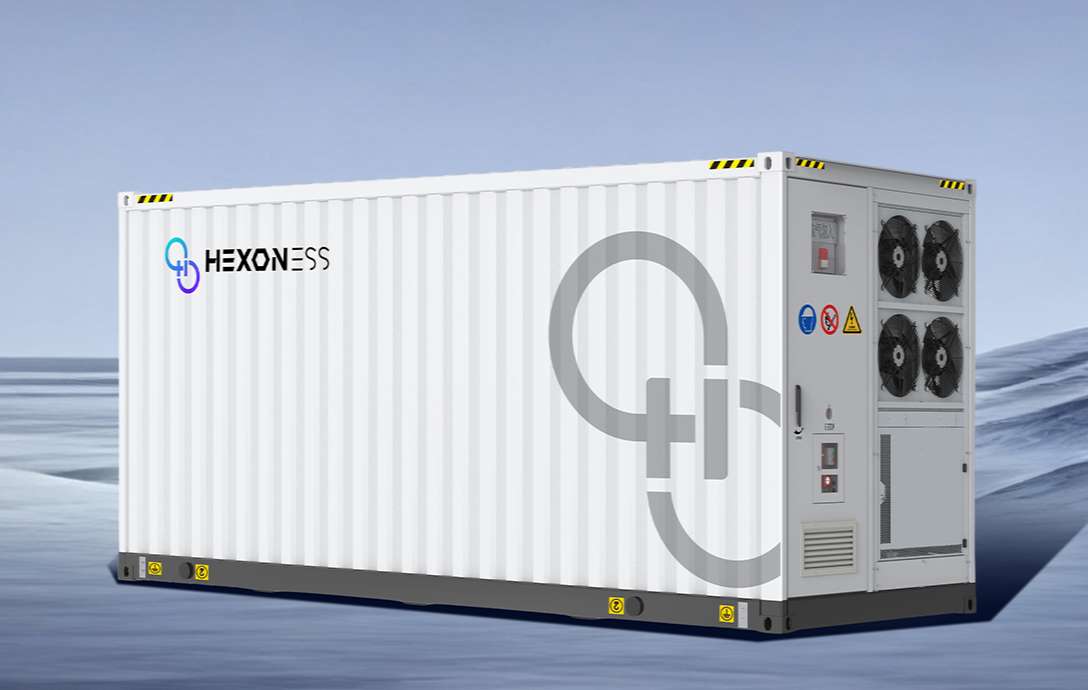

HEMERA Containerized Liquid Cooling Battery System

  • c1icon05-952.svg
    Comprehensive Safety

    Highly stable LFP battery cells
    Multi-level fire protection and explosion-proof design
    Intelligent monitoring, second-level response

  • c1icon06-811.svg
    Stable Operation

    Liquid cooling, cell temperature difference < 3°C
    Cluster-level management, eliminating the barrel effect
    Wide voltage adaptation, weak grid support

  • c1icon07-472.svg
    Ultimate Energy Efficiency

    High energy density, reduced footprint
    DC efficiency >= 94%
    Al strategy for maximizing revenue

  • c1icon08-419.svg
    Easy Deployment

    Flexible configuration, adaptable to multiple scenarios
    Plug and play, deployment cycle shortened by 40%
    Cloud-based O&M, efficiencyimproved by 50%

Product Parameters

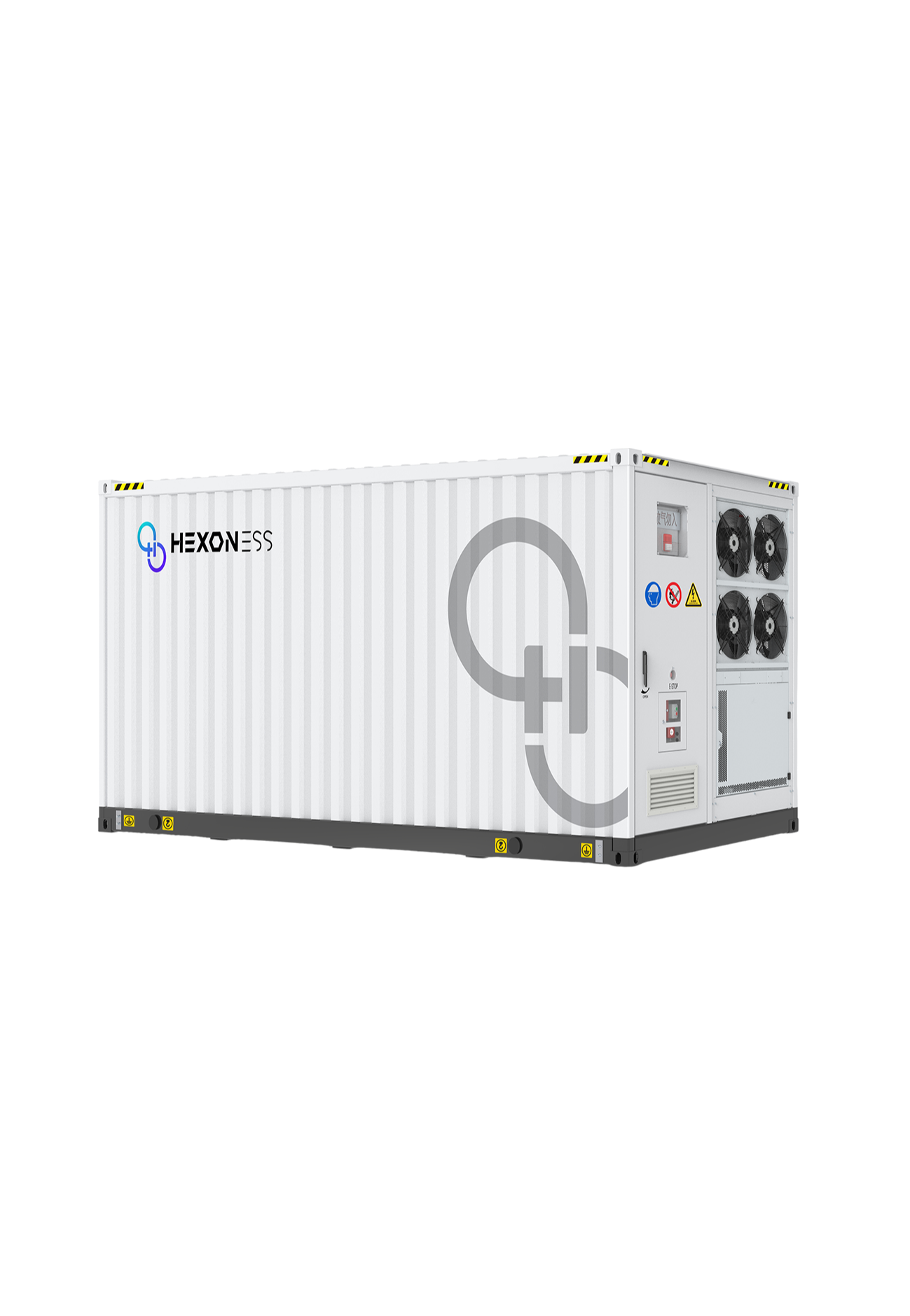

  • HBAT-5015-15
  • HBAT-4180-15
  • HBAT-3762-15
  • HBAT-3344-15
  • Cell Capacity:314Ah
    Module Model:LFP314-1P52S
    Cooling Method:Liquid Cooling
    Rated Capacity:5.015MWh
    Energy Efficiency:>=94%
    CoolingMethod:Liquid Cooling
    Dimensions (W*D*H):6058(W)x2438(D)x2896(H) mm(Overseas version)
    Weight42T
  • Cell Capacity:314Ah
    Module Model:LFP314-1P52S
    Cooling Method:Liquid Cooling
    Rated Capacity:4.180MWh
    Energy Efficiency:>=94%
    CoolingMethod:Liquid Cooling
    Dimensions (W*D*H):6058(W)x2438(D)x2896(H) mm(Overseas version)
    Weight36T
  • Cell Capacity:314Ah
    Module Model:LFP314-1P52S
    Cooling Method:Liquid Cooling
    Rated Capacity:3.762MWh
    Energy Efficiency:>=94%
    CoolingMethod:Liquid Cooling
    Dimensions (W*D*H):6058(W)x2438(D)x2896(H) mm(Overseas version)
    Weight33T
  • Cell Capacity:314Ah
    Module Model:LFP314-1P52S
    Cooling Method:Liquid Cooling
    Rated Capacity:3.344MWh
    Energy Efficiency:>=94%
    CoolingMethod:Liquid Cooling
    Dimensions (W*D*H):6058(W)x2438(D)x2896(H) mm(Overseas version)
    Weight30T

Relevant Solutions

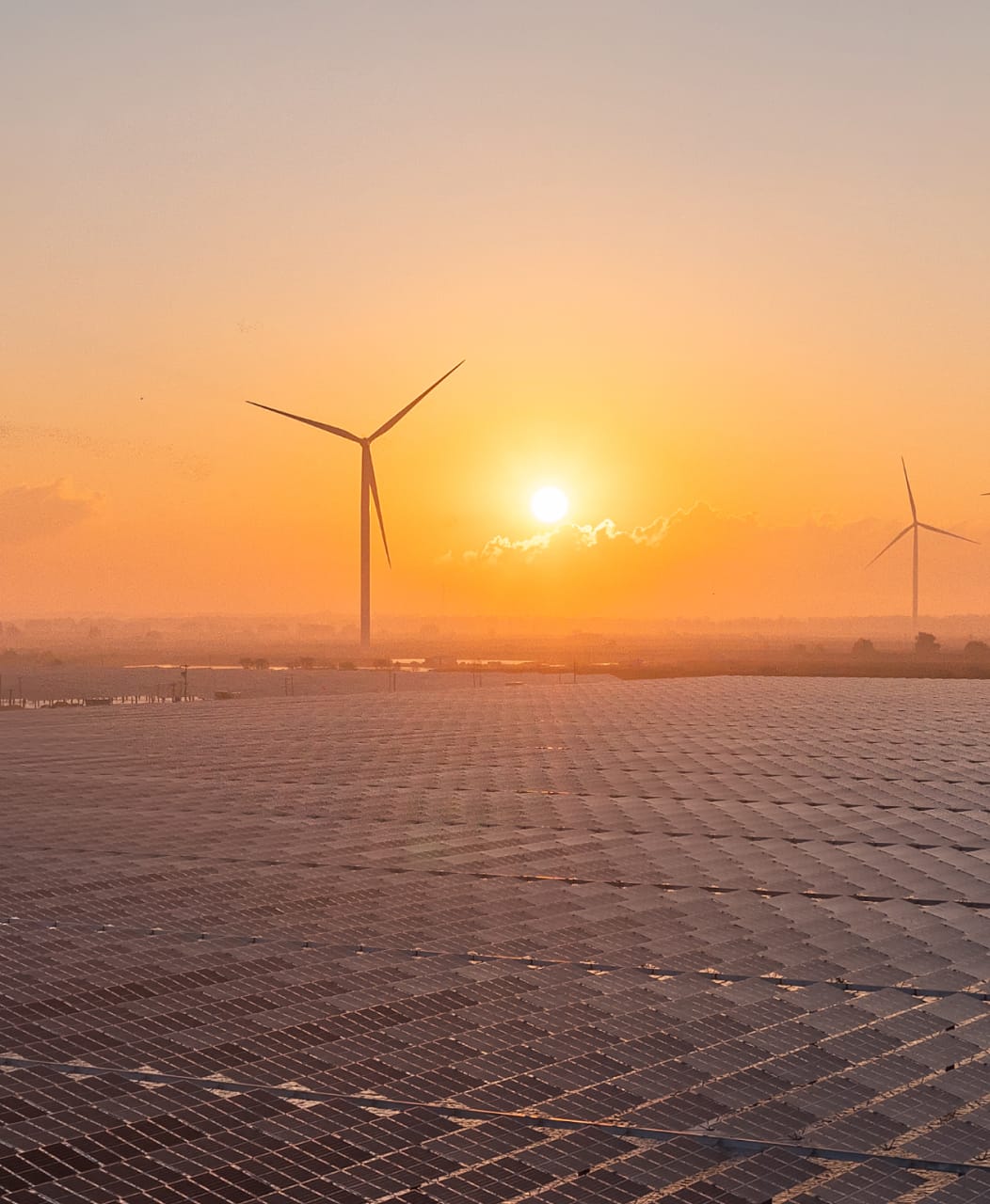

  • Large-Scale Ground-Mounted ESS Solution (FCR, aFRR)

    Our system features fully liquid-cooled thermal management and is directly integrated into the high voltage AC side. It provides millisecond-level precision response, participating in grid frequency regulation to enhance power quality and improve grid supply stability.
