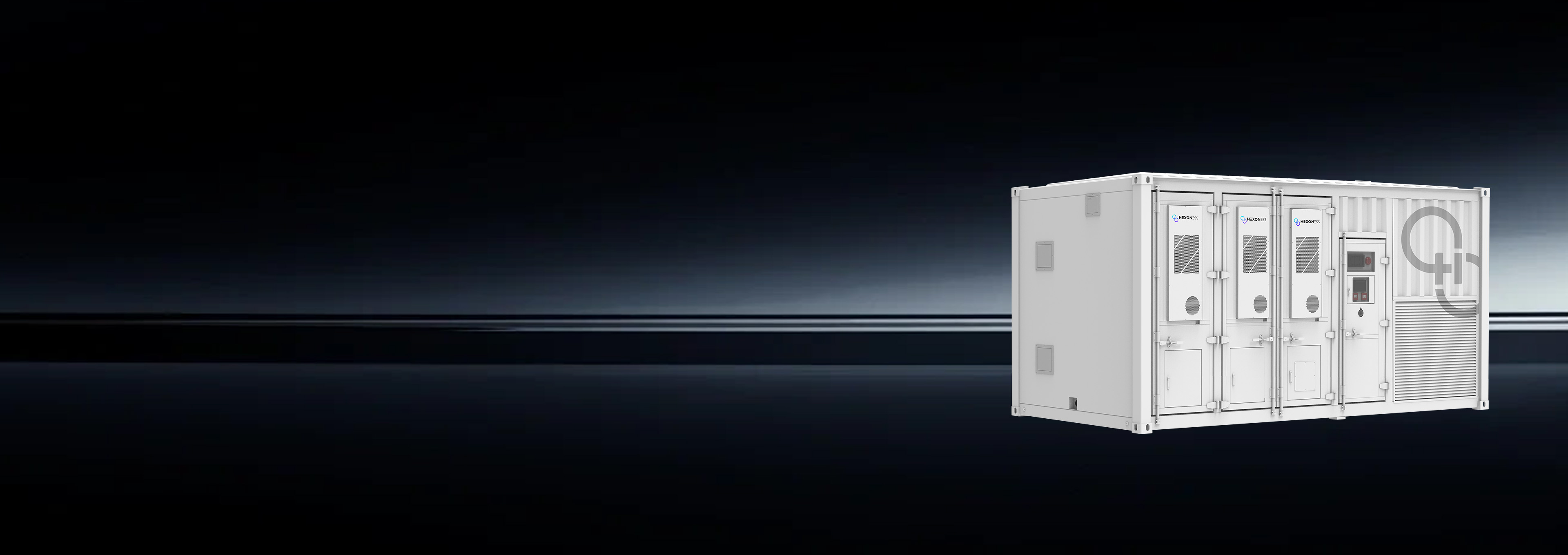

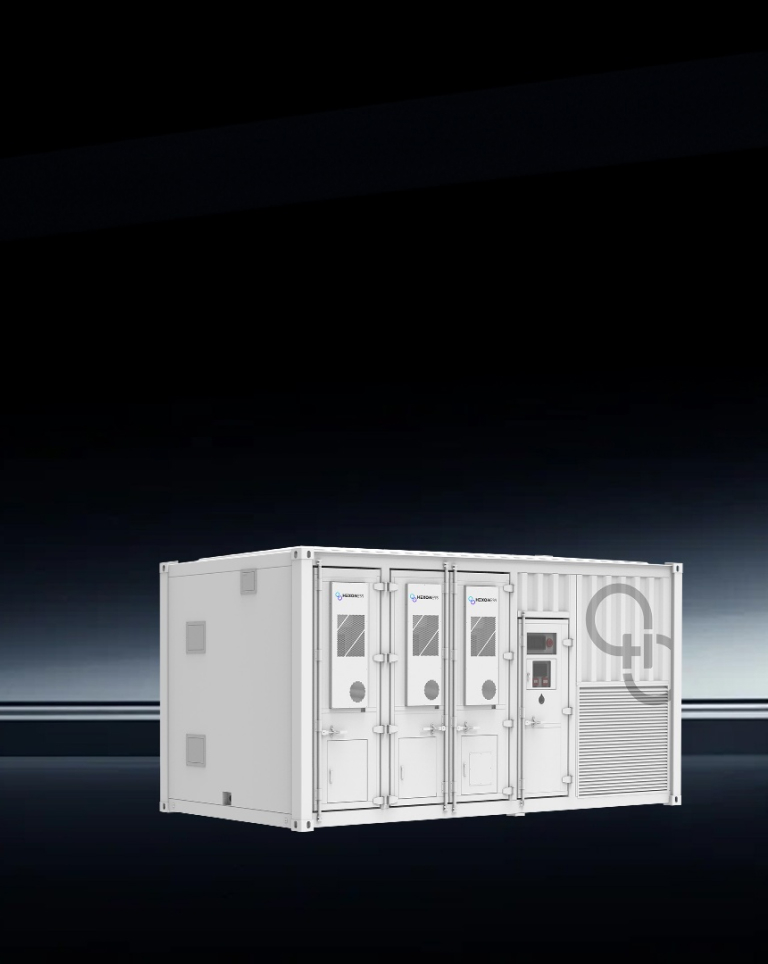

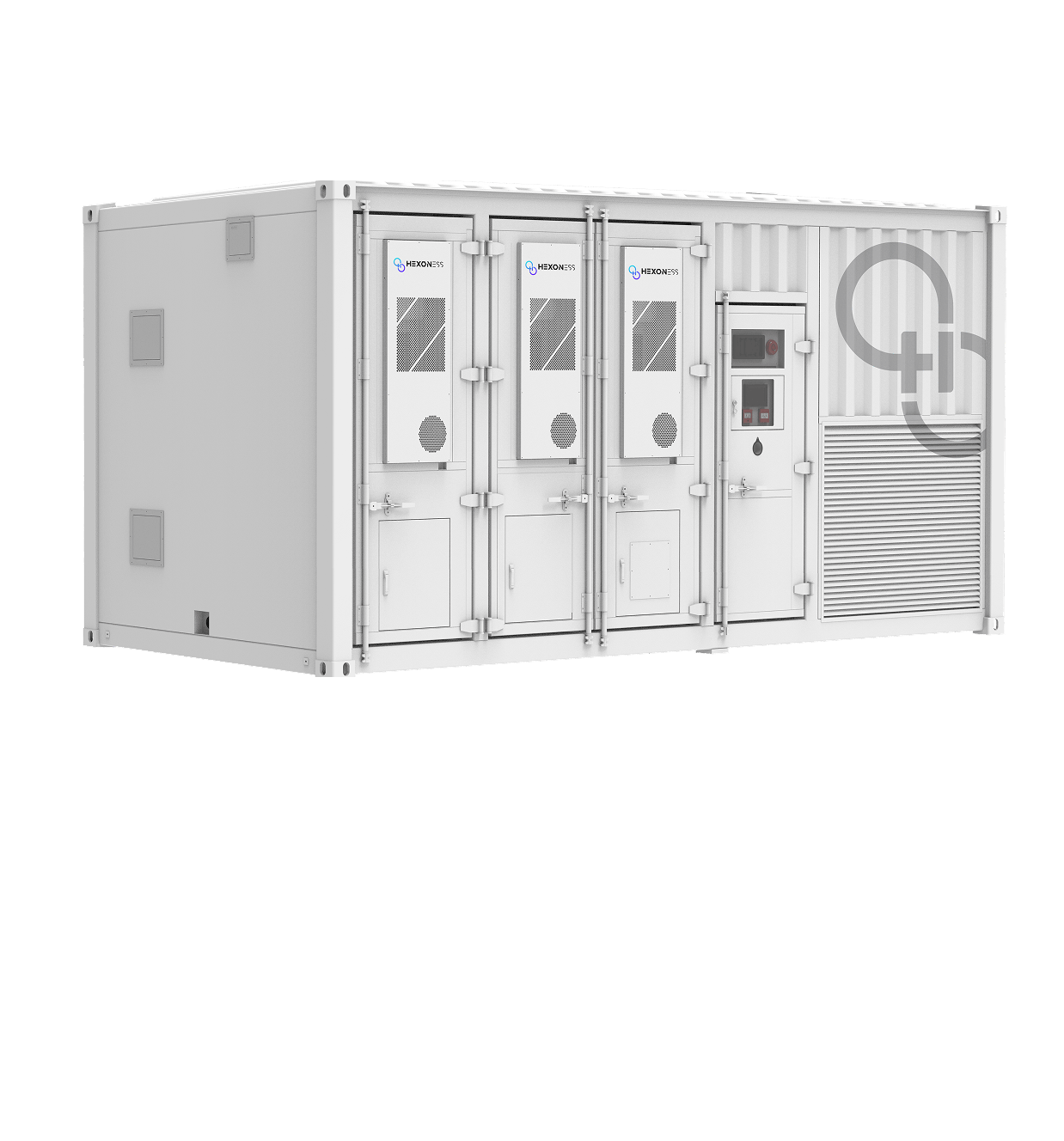

HEXSTS500-1028/1543kWh-400-A

Multi-Energy Complementary Control: Integrates PV, storage, and grid inputs via the EMS for intelligent dispatch and optimal power allocation.
Bidirectional Conversion Technology: The PCS achieves high-efficiency AC-DC conversion, supporting millisecond-level seamless transition between grid-tied and off-grid modes.
Comprehensive Monitoring & O&M: Dual-channel local + remote communication enables full-parameter visual management via mobile/PC.

Cell-Level: 314Ah high-capacity LiFePO4 cells, with cycle life ≥6,000 cycles.
System-Level: 4 clusters in parallel × 16 packs in series × 16 cells, scalable to 1MWh-level capacity.
Management-Level: Dual BMU + BCMU management with real-time monitoring of 2,000+ cell parameters.

Electrical Safety: High-voltage cabinet features triple protection: soft start, short-circuit protection, and remote ON/OFF switching.
Thermal Safety: Liquid cooling system maintains ≤3℃ temperature difference between cells, extending lifespan by 30%.
Fire Safety: Dedicated Novec 1230 fire extinguishing agent + three-stage detection and execution unit, with suppression response <10 seconds.

Multi-Mode Operation: STS transfer switch ensures critical load power supply within 20ms.
Emergency Power Supply: Redundant dual-path auxiliary power design guarantees uninterrupted control system operation.
Rapid Deployment: Containerized design supports plug-and-play on-site installation, reducing construction costs by 40%.
