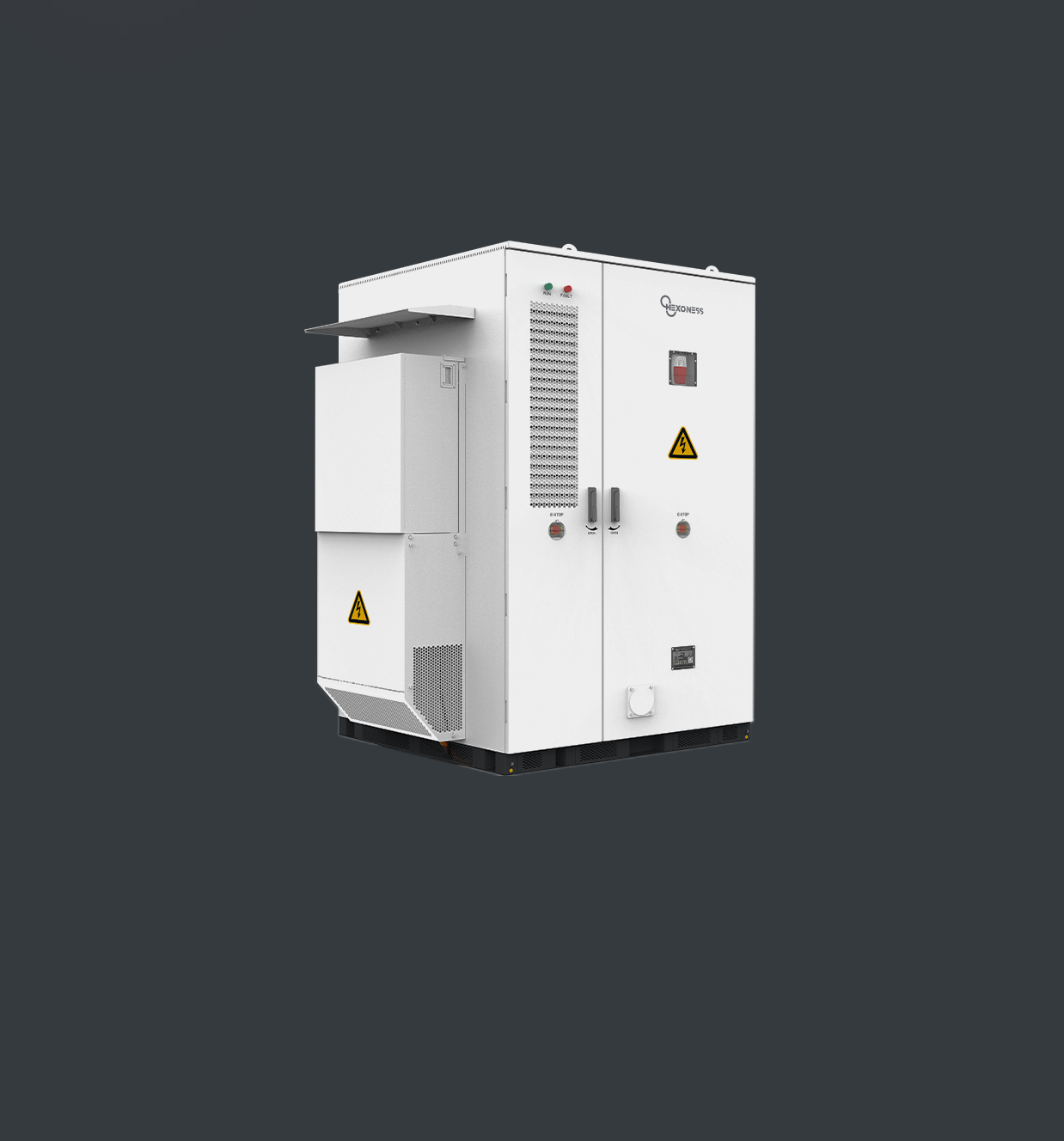

EOS-418

All-in-One C&l Energy Storage System

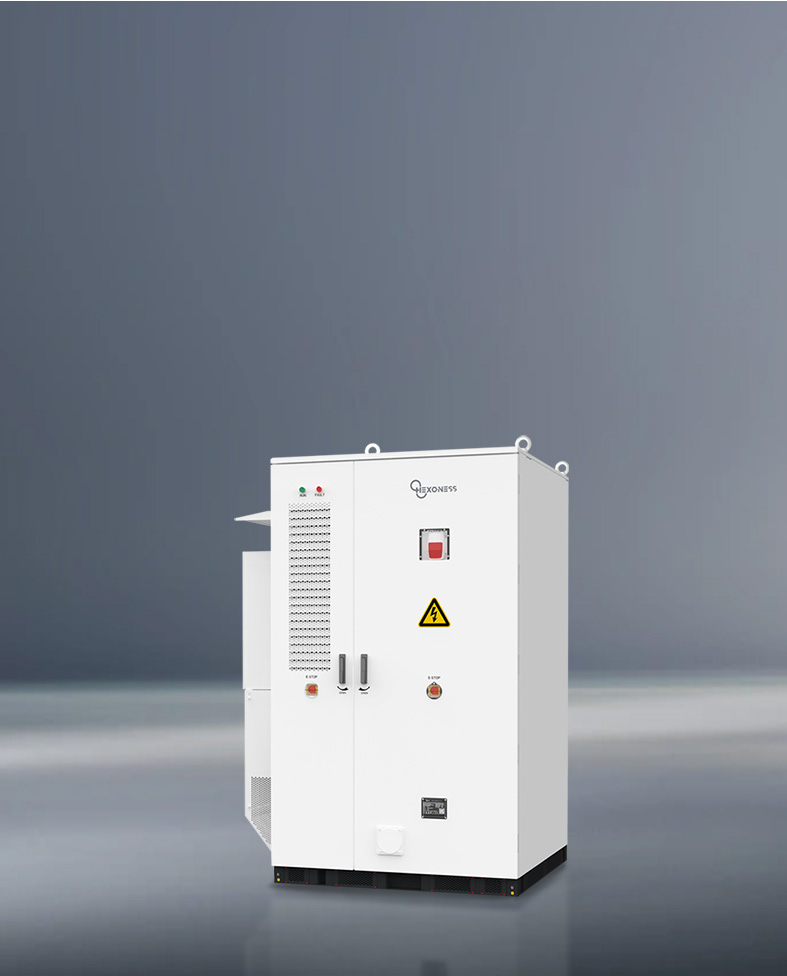

HESS-215-418(215kW/418kWh)

EOS All-in-One C&I Energy Storage System

Comprehensive Safety

Proactive Alert Cell-level monitoring, early warning；
Multi-Level Protection Pack,cluster, cabin isolation；
Fire & Explosion Prevention Triple fire protection,vent design
High Efficiency

High Conversion System efficiency≥87%；
AI-Powered Scheduling Optimized energy dispatch；
Maximized ROI Peak shaving & other revenue streams
Simple O&M

Cloud Diagnosis Fault identification in seconds；
Remote Management Cloud-based monitoring & control；
24/7 Guardian Expert team always on watch
Easy Deployment

Plug & Play Pre-installed, powered on arrival；
Time Saving Drastically reduces installation time；
Scalable Design Modular expansion as needed

Rated Power	215 kW
Battery Capacity	418 kWh
Product dimensions (WDH)	1420(W)1420 (D)2360(H)mm
Weight	3.8 t
Cell Type	LFP 3.2 V / 314 Ah
System Pack Configuration	1P52S * 8
Battery Voltage Range	1040-1497 VDC
Rated output voltage	690/800（-15% ~ 15%）Vac
Rated mains frequency	50/60 Hz
Charge-discharge conversion time	<100 ms
Cycle count	8000~10000 cycle
Full cabinet energyconversion efficiency	Maximum 90%
Protection rating	IP66 (battery Pack)/IP54 (equipment compartment)/PCS(IP66)
Operating temperature	-30°C to 55°C (optional: -40°C to +60°C)
Corrosion resistance rating	C4(C5Customisable)
Fire suppression system	PACK-level precision fire suppression + compartment-level fire suppression (aerosol) + water fire suppression+PACK-level directional exhaust
Overload capacity	110% load, 10 minutes; 120% load, 1 minute
Perissible ambient humidity	0~100% RH
Coolingmethod	intelligent liquid cooling(Supports real-time monitoring and automatic liquid replenishment) Intelligent liquid cooling
