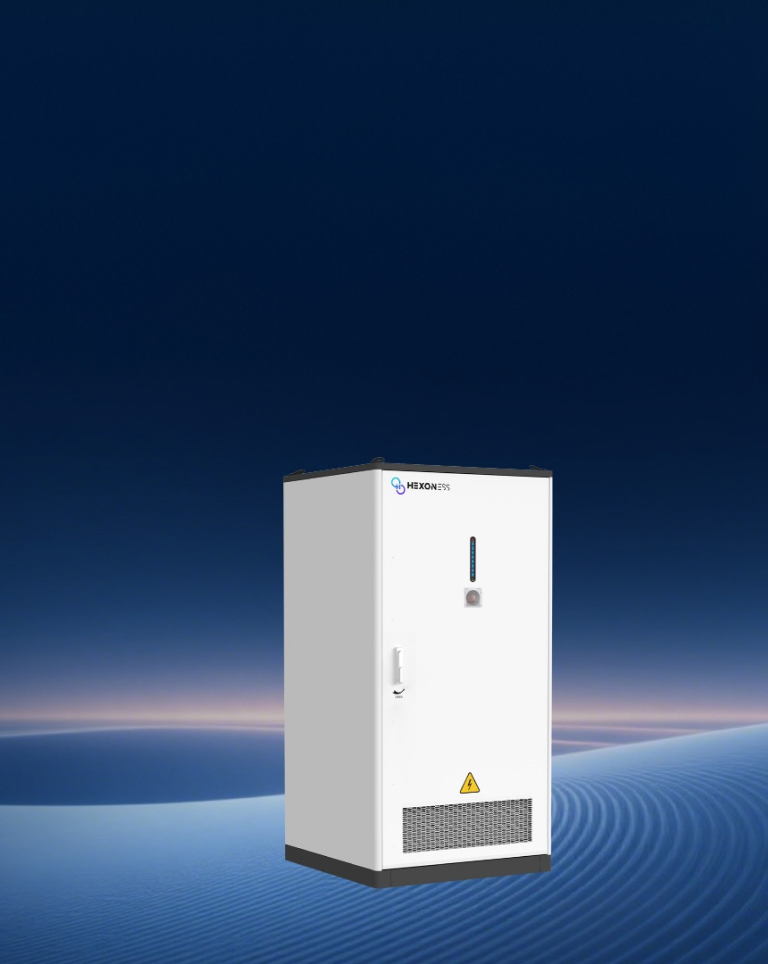

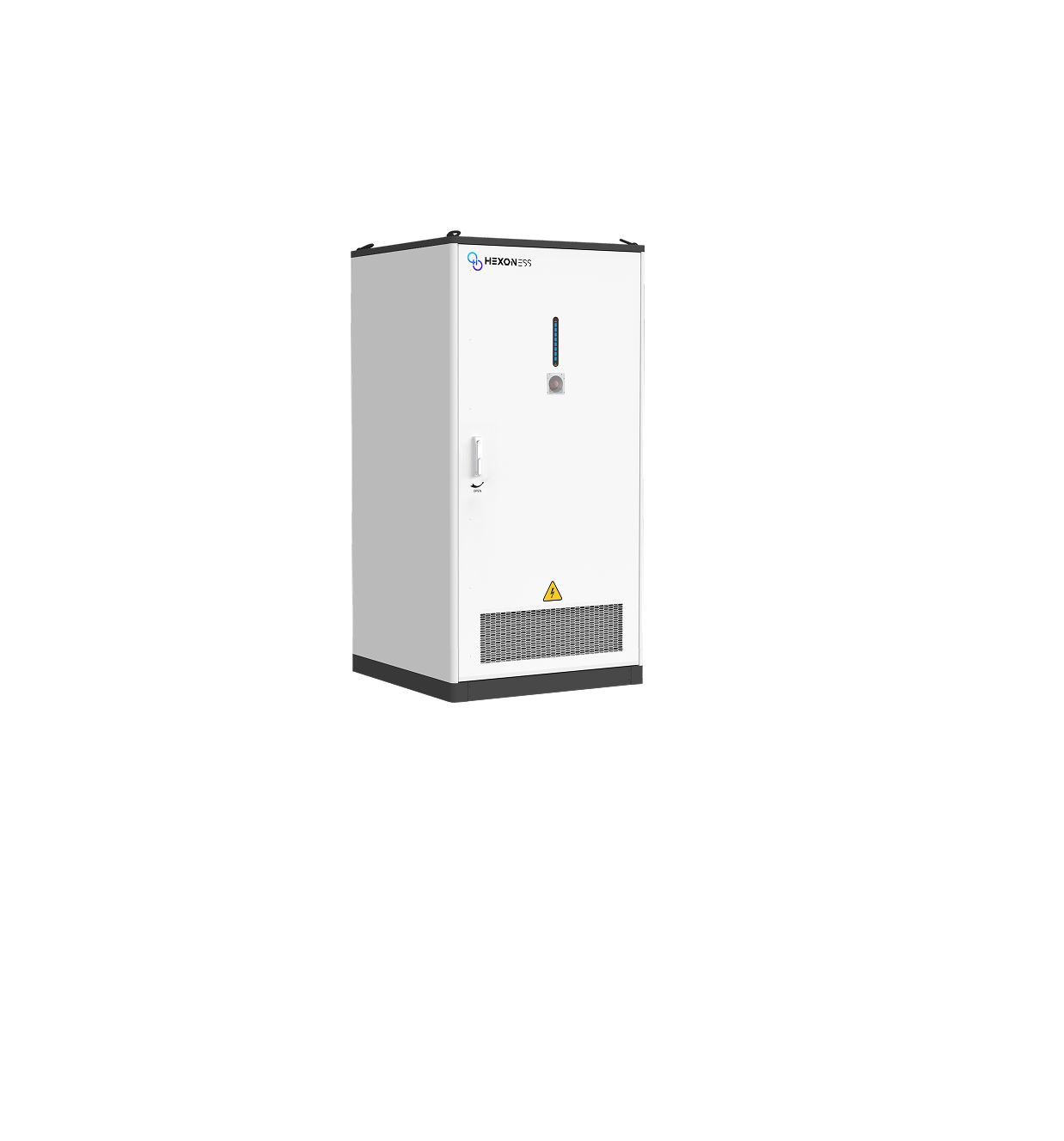

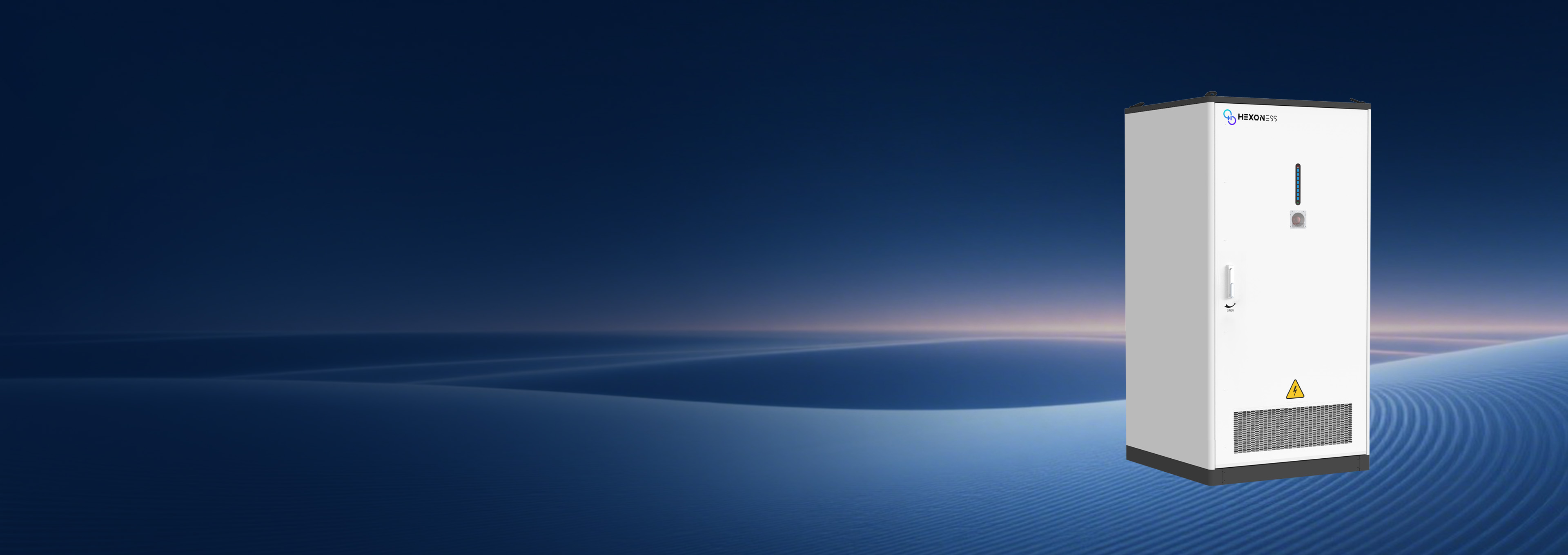

HEXSTS30-72kWh-400-A
HEXSTS64-128kWh-400-A

PV-Storage-Genset Microgrid All-in-One Integrated Unit

Contact Us

PV-Storage-Genset Microgrid All-in-One Integrated Unit

  • icon1.svg
    Outdoor Integrated Design

    Fully Integrated System: MPPT controllers are directly mounted onto PV mounting structures, eliminating separate enclosures.
    Environmental Resilience: Outdoor-rated protection (IP65), operational in temperatures from -25°C to 60°C.
    Easy Installation: Integrated mounting reduces cabling, cutting installation costs by 30%.

  • icon2.svg
    Precise DC-Side Monitoring & Control

    String Voltage/Current Monitoring: Module-level fault identification, isolating abnormal strings within 15 minutes.
    Real-Time Generation Power: Limited power regulation, flexible output control to meet grid dispatch requirements.
    Equipment Operating Status: Predictive maintenance with fault warnings based on temperature/impedance changes.

  • icon3.svg
    Dual-Line Converged Communication

    Power Transmission: DC cables handle energy transfer with >97% conversion efficiency.
    Data Exchange: Big data analysis of module performance, remote parameter configuration & firmware updates, second-level response to grid dispatch commands.

  • icon4.svg
    System-Level Safety Protection

    Electrical Safety: DC-side insulation monitoring + reverse power flow protection.
    Communication Security: RS485 opto-isolation + encrypted data transmission.
    Operational Safety: Automatic isolation of faulty strings without impacting overall system operation.

Product Parameters

  • HEXSTS30-72kWh-400-A
  • HEXSTS64-128kWh-400-A
  • Cell typeLFP 100 Ah
    Pack capacity and configuration10.24kWh/1P32S
    Battery capacity/Pack quantity:72kWh/ 7
    Battery voltage range627V～806V
    Charge and discharge  C-rate0.5C
    Cycle index6000cls
    Temperature monitoring number112
    Maximum PV array voltage100 kW
    MPPT voltage range200V-806V
    Full-load MPPT voltage range650V～800V
    Maximum branch current 250A/1000Vdc/2P，corresponding to 1 PV MPPT controller unit
    AC rated power30 kW
    AC maximum power33 kW
    Rated current47A
    THDi<3%
    DC component<0.5%lpn
    Grid type3W+N+PE
    Voltage range360VAC~440VAC
    Frequency range45~55Hz/55~65 Hz
    Power factor-1~1
    Rated output power30kW
    Maximum single-phase output power10kW
    Rated output voltage400V
    Rated output frequency50/60 Hz
    THDu<3%
    Overload capability110% overload for 10 min
    Maintenance bypass switch125A/400Vac
    Load switch125A/400Vac
    Grid switch250A/400Vac
    STS144A/100kW
    Switching time<20ms
    Maximum system efficiency≥90%
    Operating temperature-30~55℃ (derating above 40℃)
    Relative humidity0 ~ 95% RH, non-condensing
    Dimensions (L×D×H)900×900×1850mm
    Weight1450kG
    lP gradeComplete machine IP54
    Noise<70dB
    Networking connection type4G / Wifi / Ethernet
    Fire protectionAerosol
    Display screenLCD
  • Cell typeLFP 314 Ah
    Battery Pack capacity and configuration16.077kWh/1P16S
    Battery Capacity/Pack Quantity:128kWh / 8, optional 112 kWh / 7
    Battery voltage range359V～461V
    Rated charge and discharge rate and current0.5C，157A
    Cycle Life8000cls（0.5P，25±2℃，@70%SOH）
    Number of Temperature Sensors64
    Low Voltage Side Voltage Range150V~1000V
    Low Voltage Side Full Power Minimum Voltage:340V
    Rated Current180A
    Rated Power64kW
    Maximum Input Power100 kW
    Maximum Input Power160A
    Voltage Range/System Bus Voltage650V～800V
    Input Switch250A/1000Vdc/2P，one PV MPPT controller can be connected
    AC Rated Power64kW
    AC Maximum Power70.4kW
    Rated Current92A
    Current Distortion Rate<3%
    DC Component<0.5%lpn
    System Voltage Configuration3W+N+PE
    Voltage Range360VAC~440VAC
    Frequency Range45~55Hz/55~65 Hz
    Frequency Range-1~1
    Rated Output Power64kW
    Maximum single-phase output power30kW
    Rated Output Voltage400V
    Rated Output Frequency50/60 Hz
    Voltage Distortion Rate THDu<3%
    Overload Capability110% for 10 minutes
    Bypass Maintenance Switch125A/400Vac
    Load Switch125A/400Vac
    Grid Switch250A/400Vac
    STS Switch144A/100kW
    Switching Time<20ms
    Maximum System Efficiency≥90%
    Cooling MethodIntelligent air cooling
    Operating Temperature-30~55℃ (use over 40 degrees)
    Relative Humidity0 ~ 95% RH, non-condensing
    Dimensions (L×W×H)1050×1050×2050 mm
    weight1450kg
    Protection LevelComplete machine IP54
    Noise<70dB
    Networking Methods4G / Wifi / Ethernet TCP / IP
    Fire ProtectionAerosol
    Display ScreenLCD
